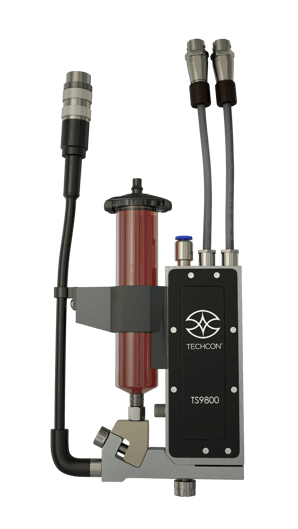

# **TS9800 SERIES JET VALVE**
## The Fastest Dispensing System on the Market
### KEY FEATURES
- Fast dispensing with high-speed piezo actuator
- Micro shot size for small component applications
- Quick and easy setup
- Low to high viscosity fluid jetting
- Localized fluid housing heater (optional)
- Fully adjustable parameters with touch screen interface
### APPLICATIONS
- LCD/OLED edge and end sealing
- Die and frame bonding for camera module assembly
- Jetting silicone phosphor in LED assembly
- Jetting under-fill in micro-electronic package applications
- UV adhesive micro dots jetting in medical device applications
- [Applications](https://info.techcon.com/jet-valves#tab-1)
- [Technical Specifications](https://info.techcon.com/jet-valves#tab-2)
- [Technical Resources](https://info.techcon.com/jet-valves#tab-3)
- [Content & Video Library](https://info.techcon.com/jet-valves#tab-4)
Typical applications include:
**Electronics**
- Edge sealing, end sealing of LCDs and OLEDs
- Die bonding, Frame bonding for camera module assembly
- Jetting silicone phosphor in the LED assembly process
- Jetting under-fill in micro-electronic package applications on PCBA
**LED Assembly**
- Jetting silicone phosphor
- Jetting under-fill for flip chip LEDs
- Jetting conformal coating
**Medical Device & Life Science**
- Jetting UV adhesives for bonding
- Jetting sealant for gasketing
- Jetting reagents to test strips
**Medical Assembly**
- Jetting UV sealant for gasketing
- Jetting greases for lubrication
- Jetting ink for marking
| **Valve Specifications** | |
| --- | --- |
| **Valve Size (mm) H x W x D** | 125 mm x 102 mm x 16 mm |
| **Valve Size (inches) H x W x D** | 4.9" H x 4.0" W x 0.63" D |
| **Valve Weight** | 258 g |
| **Max Fluid Pressure** | 6.9 Bars (100 psi) |
| **Nozzle Orifice Diameter Range** | 0.05 mm to 0.40 mm |
| **Minimum Shot Size** | < 2 nL |
| **Max. Dispensing Frequency** | 1500 Hz Continuous, 2000 Hz Burst |
| **Wetted Parts** | Stainless Steel, Tungsten Carbide, PEEK, EPDM, FFKM |
| **Fluid Pressure** | 0.07 to 6.9 Bars (1.0 to 100.0 psi) |
| **Fluid Viscosity** | 1 - 2 million cps |
| **Operating Frequency** | 1 - 1500 Hz (Depending on Parameter Settings |
| **Response Time** | 1 µs |
| **Operating Temperature Range** | 10 - 50 °C (50 - 122 °F) |
| **Smart Controller Specifications** | |
| --- | --- |
| **Controller Size (mm) H x W x D** | 126 mm H x 137 mm W x 181 mm D (dimensions without cables) |
| **Controller Size (inch) H x W x D** | 4.96" H x 5.40" W x 7.13" D (dimensions without cables) |
| **Controller Weight** | 2110 g |
| **Parameter Sets Memory** | 50 Sets Internally, Unlimited External |
| **Standard Interface** | DB15, RS-232, Ethernet, USB |
| **Operating Temperature** | 10 - 50 °C (50 - 122 °F) |
| **Power Connection** | 110/240 VAC; 50/60 Hz |
| **Certification** | TUV, KC, PSE, CE |
| **Display** | Color, Touchscreen |
| **Maximum Heating Temperature** | 90 °C (194 °F) |
| **Interfaces** | DC, 9-pin, 15-pin, Multi-pin, USB, Ethernet, MicroSD, Air In/Out |
| **Operating Temperature Range** | 10 - 50 °C (50 - 122 °F) |
| **Ventilation Concept** | Convection Airing, Internal Cooling Fan |
| **Line Voltage** | 100 - 240 VAC |
| **Line Frequency** | 50/60 Hz |
| **Controller Max. Power Consumption** | 221 Watts |
- [Data Sheet](https://www.techcon.com/wp-content/uploads/2020/06/Technical_Data_sheet_Jet_ValveTS9800.pdf)
- [User Guide](https://www.techcon.com/wp-content/uploads/2020/06/ts9800-user-guide-7511-0360_A.pdf)
- [Spare Parts Guide](https://www.techcon.com/wp-content/uploads/2022/02/TS9800-Jet-Valve-Spare-Parts-Guide.pdf)
