# TS8200D 系列
### 双组份螺杆泵
TS8200D系列双组份螺杆泵是一种用于双组份材料的精密体积混合和点胶系统。它由两个渐
进腔(PС)泵组成，集成在一个与静态混合管相连的流体流道中。材料的A组份和B组份由渐进
腔泵以正确的比例精确送入静态混合管，从而实现精确的混合和点胶输出。
TS8200D双组份螺杆泵的每一个组件都按照最高公差设计，并以极致精度制造，确保世界级的
准确性和可重复性。
芯片封装 l 灌封应用 l 电池密封 l 导热硅脂点胶 l 底部 填充
---
## 主要特性
双组份混合点胶
可重复性达到 +/- 1%
混合比例在1:1至10:1之间
不受流体压力或粘度变化的影响
不存在材料交叉污染的可能性
快速和容易的清洁和维护
---
## 微米级混合的优势
### 微米级计量混合泵
- 容积式技术可将计量输出偏差控制在±1%以内
- 高品质静态混合器确保材料充分固化
- 通过可调节流量的连续流动实现高效运行
- 定子可在高达100 psi的流体入口压力下提供可靠密封
- 吸回功能可防止材料滴落
- 清洁快捷简便，有效减少停机时间
- 可选配传感器以监测背压
### TS580D-MM 控制器
- 配备触摸屏的直观图形用户界面
- 可全面控制流量、混合比例和点胶输出
- 符合工业4.0标准，支持通过以太网进行远程访问和监控
- 快速简便的泵校准
---
## 应用视频
---
## Micro-Meter Mix 技术文档

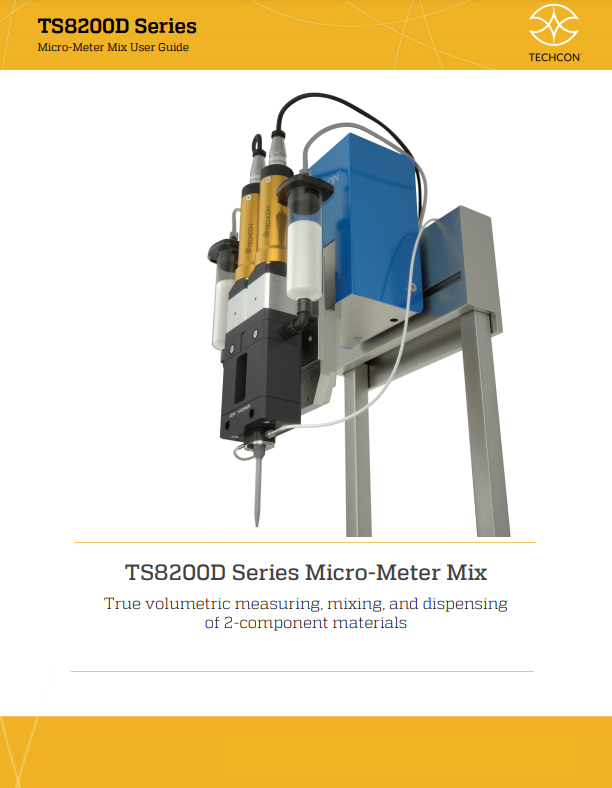

[](https://www.techcon.com/wp-content/uploads/2023/03/Techcon-TS8200D-Micro-Meter-Mix-User-Guide-%E7%94%A8%E6%88%B7%E6%8C%87%E5%8D%97-CN.pdf?nocache=1)
分配阀用户指南

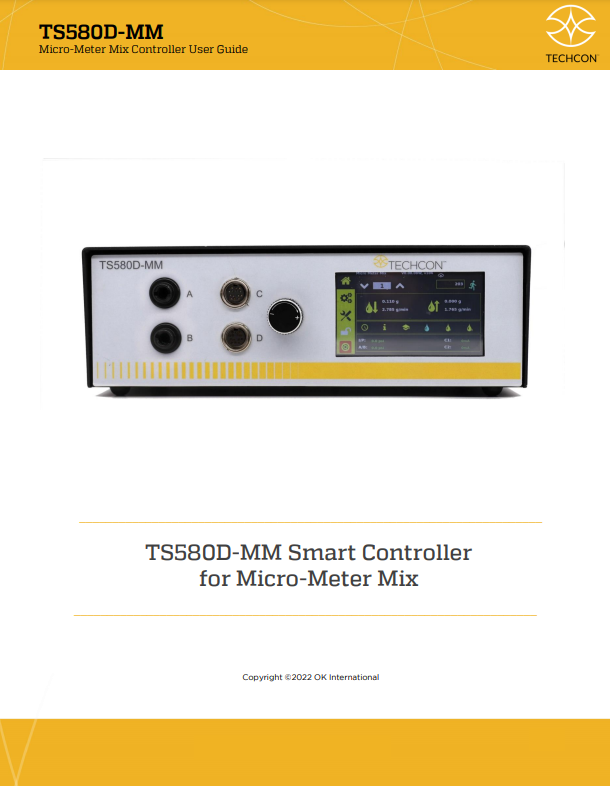

[](https://www.techcon.com/wp-content/uploads/2023/03/TechconTS580D-MM-Micro-Meter-Mix-Controller-%E7%94%A8%E6%88%B7%E6%8C%87%E5%8D%97-User-Guide-CN.pdf?nocache=1)
控制器用户指南

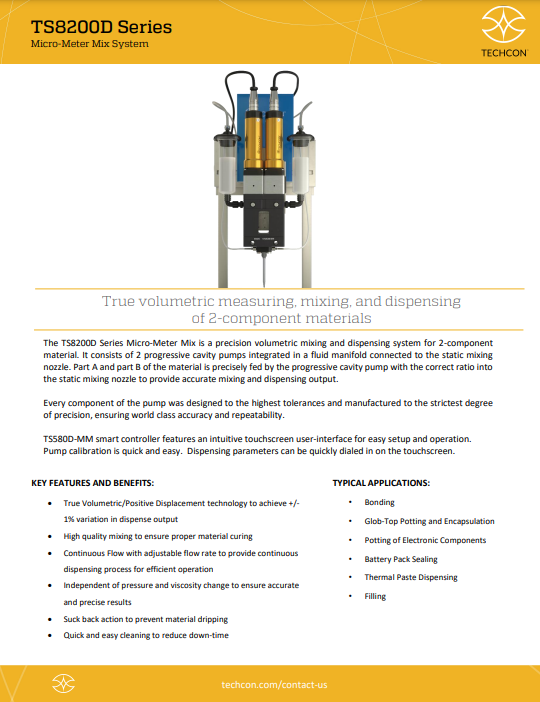

[](https://www.techcon.com/wp-content/uploads/2022/08/Techcon-TS8200D-Micro-Meter-Mix-Data-Sheet-EN.pdf?nocache=1)
阀门数据表（英文）

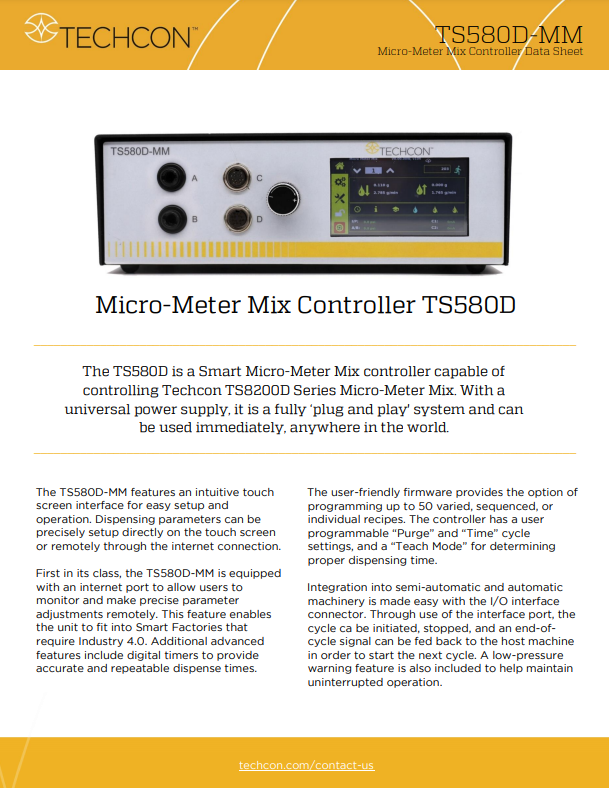

[](https://www.techcon.com/wp-content/uploads/2022/09/Techcon-TS580D-MM-Controller-Data-Sheet-EN.pdf?nocache=1)
控制器数据表（英文）
---
## MICRO-METER MIX 技术规格
### 阀门规格
| | **100** | **200** | **300** | **400** | **500** |
| --- | --- | --- | --- | --- | --- |
| **尺寸（公制）：** | 长 276 毫米 × 宽 69 毫米 × 深 33 毫米 | 长 276 毫米 × 宽 69 毫米 × 深 33 毫米 | 长 276 毫米 × 宽 69 毫米 × 深 33 毫米 | 长 302 毫米 × 宽 69 毫米 × 深 33 毫米 | 长 323 毫米 × 宽 69 毫米 × 深 33 毫米 |
| **重量：** | 2.74 磅（1240 克） | 2.74 磅 (1240 克) | 2.74 磅 (1240 克) | 2.95 磅 (1338 克) | 3.25 磅 (1452 克) |
| **电机：** | 24 V 直流，增量式编码器 | | | | |
| **流速：** | 0.24 – 2.42 毫升/分钟 | | | | |
| **每转每泵的出液量（平均值）：** | 0.012 毫升 | | | | |
| **计量重复性：** | ±1% | | | | |
| **计量精度：** | \>99% | | | | |
| **流体压力** | \> 粘度≤1000 Cps时最高2 bar (30 psi)；粘度\>1000 Cps时最高5.5 bar (80 psi)。 | | | | |
| **流体入口端口：** | 1/8”' NPT 内螺纹 | | | | |
| **流体出口端口：** | 静态混合器适配器 | | | | |
| **混合喷嘴：** | K型，标准卡口式 | | | | |
| **工作温度：** | 10-40°C (50-104°F) | | | | |
| **流体粘度：** | 1-300K Cps (m.Pa.s) | | | | |
| **与介质接触部件：** | 铝、不锈钢、PFE、聚烯烃、Delrin、Viton、丁腈橡胶、 氟硅橡胶、超高分子量聚乙烯、尼龙 | | | | |
| **安装方式：** | M4 x 35 毫米、SHC、 不锈钢 | | | | |
| **认证：** | CE、TÜV-GS | | | | |
| **保修：** | 1年有限保修 | | | | |
### 控制器规格
| **尺寸（英制）：** | 11.4'‘ x 8.3’' x 3.9” |
| --- | --- |
| **尺寸（公制）：** | 290& nbsp;× 212 × 98 mm |
| **重量：** | 6.17 lb (2,800 g) |
| **输入电压：** | 24 VDC |
| **输出电压范围：** | 0-24 VDC |
| **额定功率：** | 15 W |
| **进气压力：** | 最大 6.9 bar (100 psi) |
| **出气压力：** | 0-6.9 bar (0-99.9 psi) |
| **污染等级：** | II |
| **安装类别：** | I |
| **室内使用：** | 海拔高度最高 2,000 m (6,562 ft) |
| **工作温度** | 0 ˚C 至 50 ˚C (32 ˚F 至 122 ˚F) |
| **储存温度** | -10 ˚C 至 60 ˚C（14 ˚F 至 140 ˚F） |
| **最大相对湿度** | 温度在 31 ˚C（87.8 ˚F）以下时为 80%，并随温度升高呈线性下降，至 40 ˚C（104 ˚F）时线性降至50% |
| **显示屏：** | 电阻式触摸屏 |
| **符合或超过：** | CE、TÜV和NRTL认证 |
---
